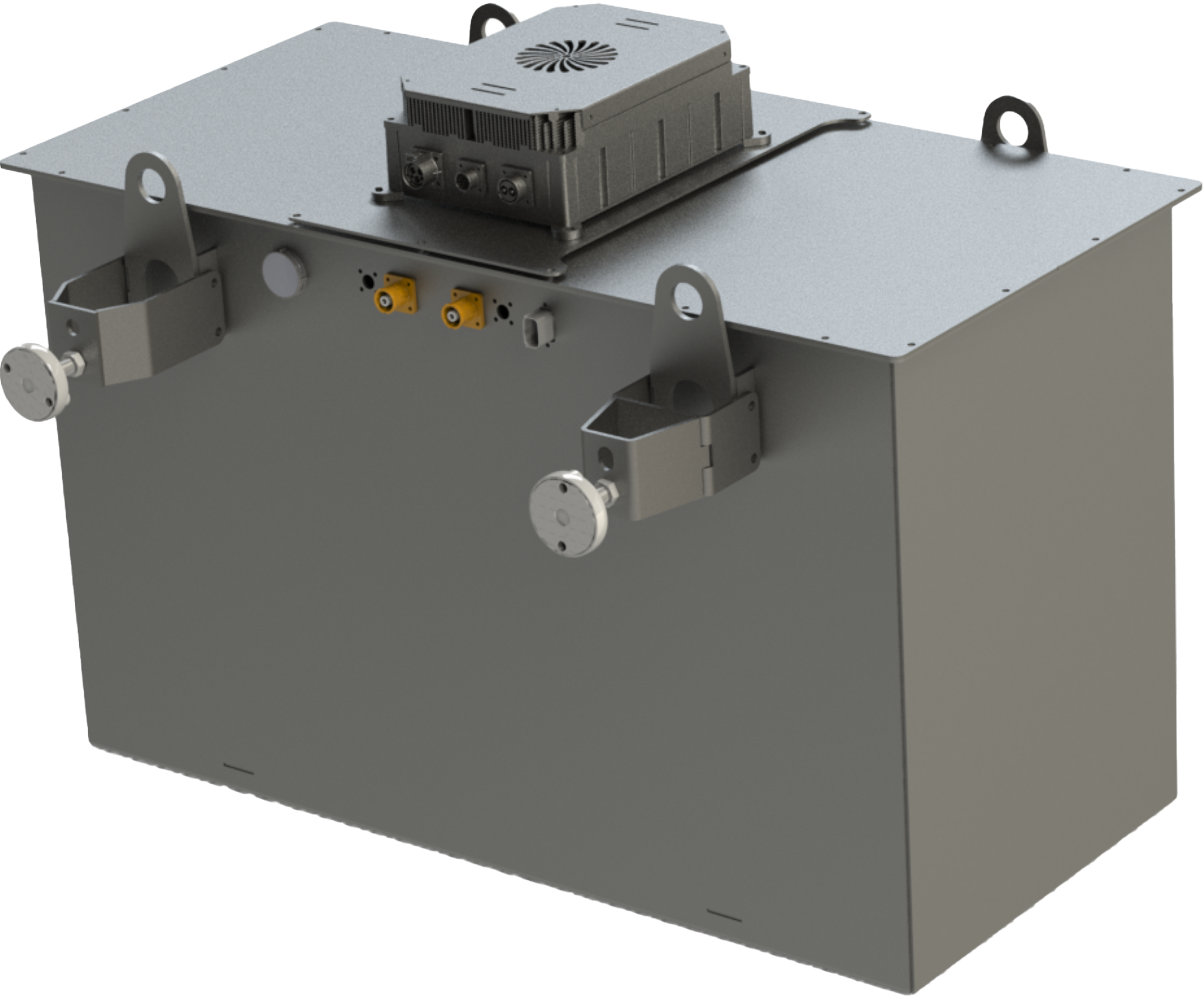

Battery Pack
80 V lithium-ion
Designed for GSE equipment. Compatible with baggage tractors, Cargo Loaders, Belt Loaders and Pushback Tractors.
Electrify your Equipment
80V Battery
Specifications
01
Option 1: 27 kWh (360 Ah)
Option 2: 54 kWh (720 Ah)
02
Option 1 & Option 2:
- Max charge (continuous): 350A
- Max charge (10 sec): 800A
- Max discharge current (continuous): 500A
- Max discharge current (10 sec): 800A
03
Option 1:
- 80 VDC fast chargers: 80% in 45 minutes
- Optional: J1772 AC Level 2 (up to 6.6 kW) 100% in 4 hours
Option 2:
- 80 VDC fast chargers: 80% in 90 minutes
- Optional: J1772 AC Level 2 (up to 6.6 kW) 100% in 8 hours
- Optional: J1772 AC Level 2 (up to 13.2 kW) 100% in 4 hours
Option 1:
- Weight: 540 lbs (245kg)
- Dimensions: 30L x 17W x 20H in
Option 2:
- Weight: 1025 lbs (465kg)
- Dimensions: 42L x 21W x 25H in
Option 1 & Option 2
- Automatic battery heating
- Over-current & over-discharge protection
- Over-voltage & under-voltage protection
- Integrated logging system
- IP Rating: IP65
- Operating Temperature: -30 °C to 45 °C
- Rugged Enclosure designed for harsh airport environments
